The Mega Beast is an 80-amp load service conductor tester. The Combo adds 3′ extra cable lead to the Mega Beast, and allows for the plugin adapter to be used.
Call for availability. 503-692-4600
80 Amp Conductor Tester
The Mega Beast tester is as easy to use as the original Beast of Burden, and it’s more powerful than the Super Beast. In 20-amp increments, you can apply an 80-amp load on conductors to detect the most elusive problems on secondary service. This load mimics a household’s energy usage. In addition, the Mega Beast can be utilized to verify the installation of new service connections in order to ensure proper voltage supply. The Mega Beast features fuses and circuit breakers for user safety.

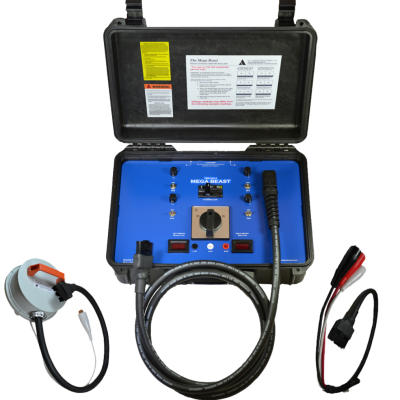

The Mega Beast Combo includes:

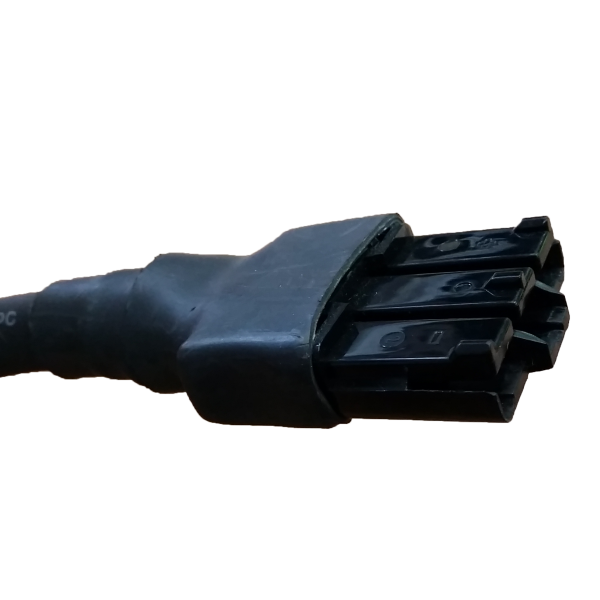

- –Connector end for cable
- –Additional meter socket adapter
- –Three clip connection adapter
- –Additional 3′ of cable lead. Total of 10′ cable lead from box.
80-amp artificial unbalanced load with digital meters
- • Works with 20A switches, capable of providing 20, 40, 60, or 80 amps
- • Indicates problems on secondary service
- • Detects open neutrals quickly and accurately
- • Incredibly easy to use–the same basic, simple steps apply in all operating models of the Beast units
- • 80 Amp load identifies problems quicker than the Super Beast
- • Offers meter technicians an effective method to locate loose, open, or faulty connections to lines and neutral.
Mega Beast (PN: HJA-900-D-COMBO) Downloads
- Arnett Product Catalog 2017
- Mega Beast Brochure
- Secondary Service – Points of Connection Diagram
- Service Conductor Testers – Product Features Guide
- Super Beast & Mega Beast- Sample Readings
|Dimensions||21 x 12 x 16 in|
HJ Arnett Industries
|Country of Origin||
CAT IV Rated Alligator Clips
80 Amp Artificial, Unbalanced Load
Digital Meter Readings
