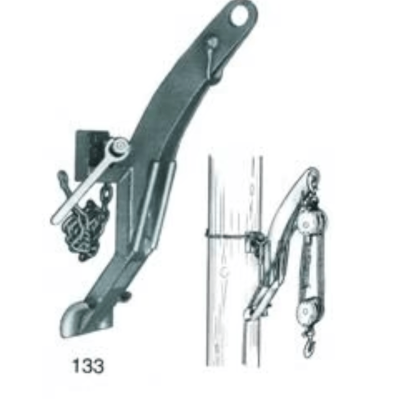

The Transformer Gin Assembly is made from steel. Can be installed on the pole by one lineman with the single alloy chain. The assembly can also be installed over a cross arm. Blocks can be installed in the eye or from the shackle provided. Rope guides for the fall line are located on
both sides of the gin assembly. The gin assembly has a safe working load limit of 2,000 lbs. (907 kgs).
The safe working load limit is the total load on the gin assembly including load to be lifted, pull on fall line and friction.
WARNING: Tagg ing loads will subject gin to side loading that will reduce the WLL.
