ASTM Grade 5

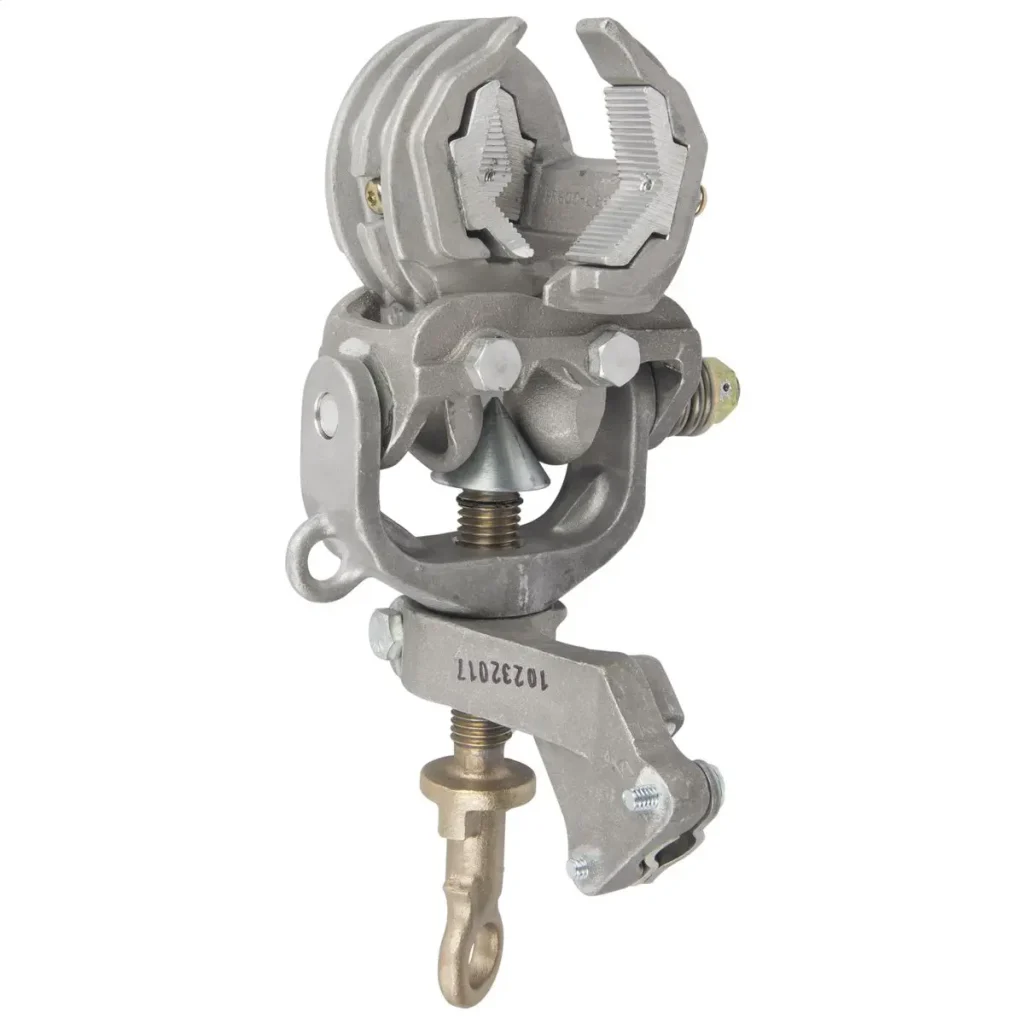

All-Angle Clamp #C6001732
| Product Specifications | |
|---|---|
| Â Product Type | Â Grounding Clamps |
| Â Configuration | Â Single Clamp |
| Â Product | Â All-Angle Clamp |
| Â Jaw Opening Size (Maximum) | Â 2.88″ (73 mm) |
| Â Jaw Opening Size (Minimum) | Â 0.258″ (7 mm) |
| Â Fault Current Rating | Â ASTM Grade 5 |
| Â Material | Â Aluminum |
| Â Terminal Type | Â 5/8″-11 Thread |
| Â Handle Type | Â Eyescrew |
| Â Jaw Type | Â Serrated Jaws |
| Â Continuous Current | Â 400 Amps |
| Â Fault Current – 15 cycles | Â 43,000 Amps |
| Â Fault Current – 30 cycles | Â 30,000 Amps |
| Â Recommended Torque | Â 400 in-lbs (542 N-M) |
| Â Jumper Range – Maximum | Â 4/0 Cable w/ Threaded Terminal |
| Â Jumper Range – Minimum | Â #2 Cable w/ Threaded Terminal |
| Â Material Type | Â Standard |
| Â UPC Code | Â 09635902385 |
| Â Standard Package | Â 5 |
| Â Standard Package Unit | Â Each |
| Â Min Order Qty | Â 1 |
| Â Weight / Ea. | Â 3.332 lbs |
