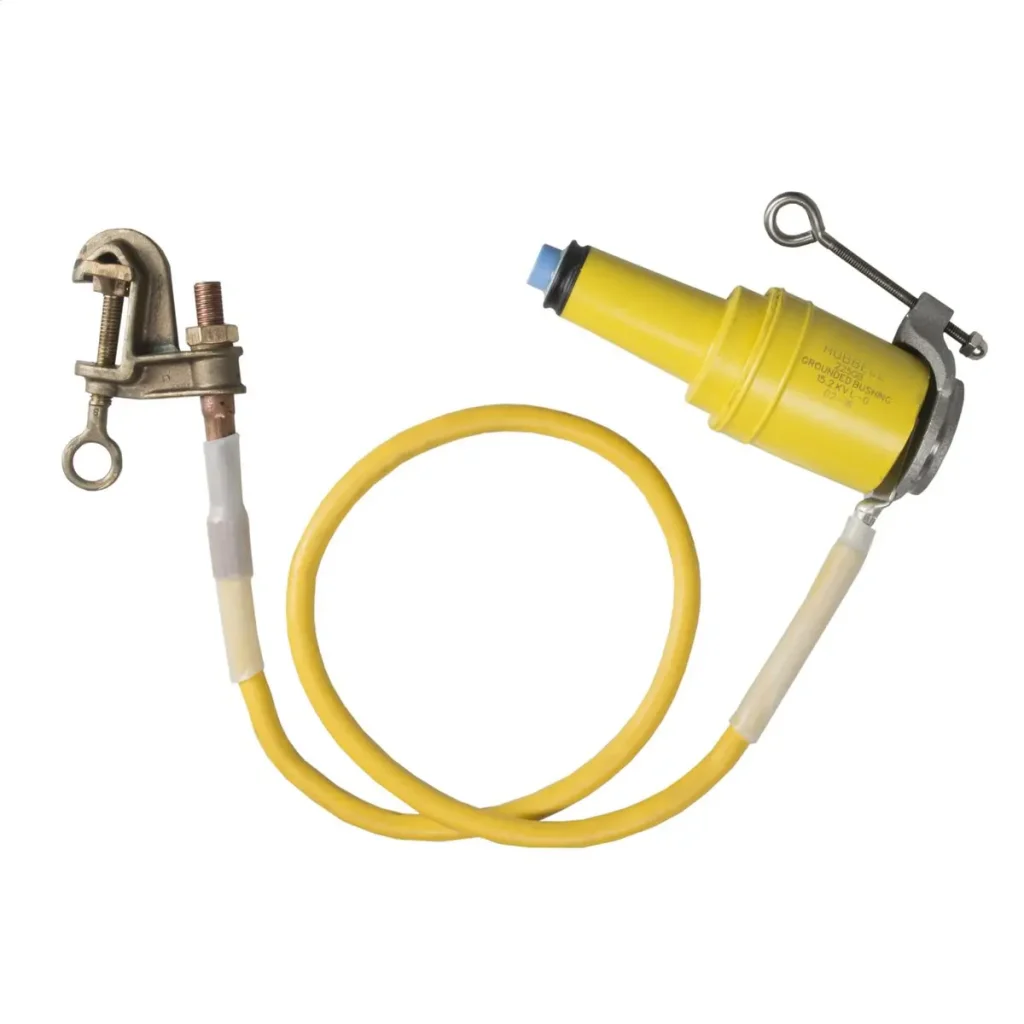

This 25kV/ 35kV set includes a loadbreak bushing and T6000466 bronze ground clamp connected by a 4 foot yellow 1/0 cable.
Designed for single or three-phase systems.
Provides a temporary or permanent parking position for energized 8.3/14.4 kV loadbreak elbows designed to requirements of Fig. 5 of IEEE Standard 386. The bracket permits mounting on the apparatus parking stands.
Used in pad-mount cabinets and underground vaults
A tin-plated copper connector joins the cable tothe bushing
A threaded copperferrule connects thecable to the clamp
Fault current rating for eachset: 10,000 Amps for 10 cycles
