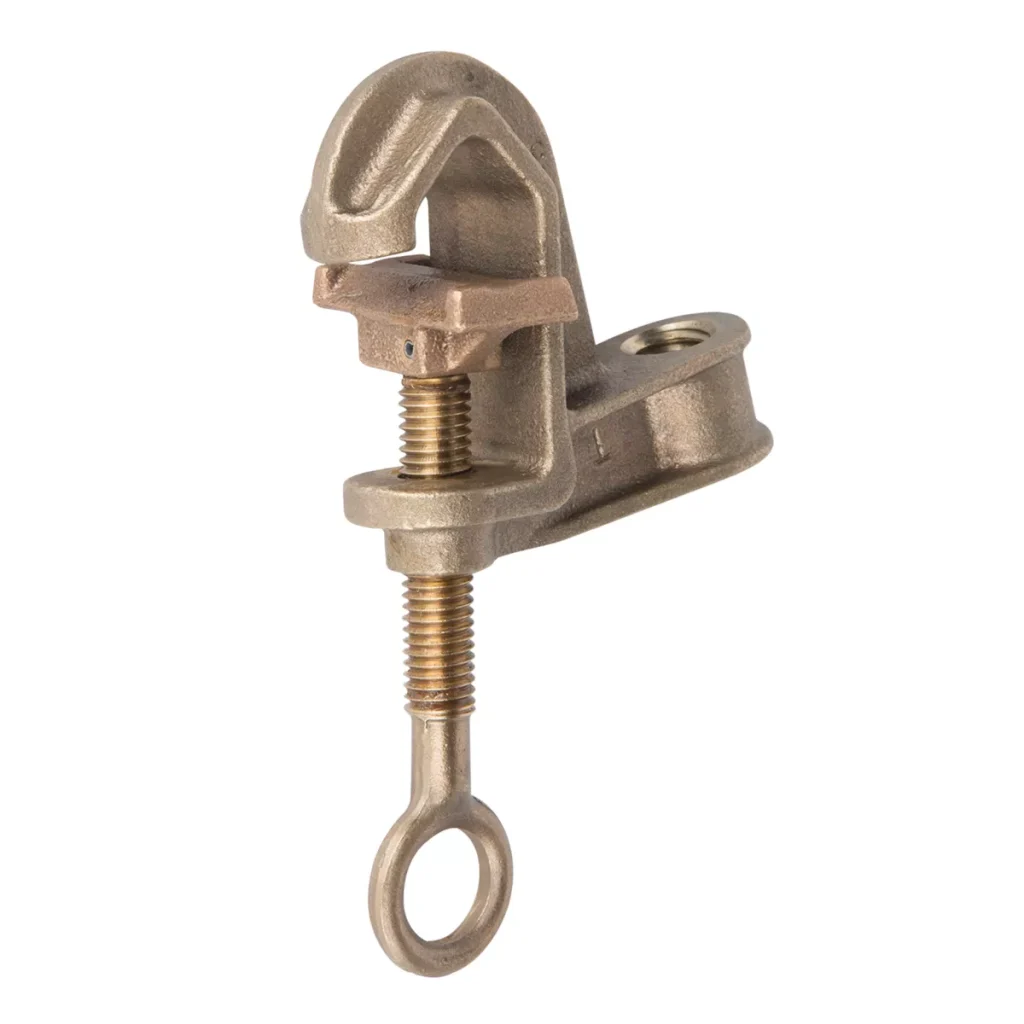

Ground Clamp, C-Type, Type I-Class A-Grade 2, 0.814″ Jaw Opening
- C-Type Ground Clamp
- Continuous Current 250A
- Fault Current 21kA for 15 cycles or 15kA for 30 cycles
- Main Line Range Max. 477kcmil ACSR (0.814″)
- Main Line Range Min. #6 Sol. CU (0.162″)
- Jumper Range Max. 1/0 Grd. Cable
- Jumper Range Min. #2 Grd. Cable
- ASTM Type I, Class A, Grade 2
- Jaws Smooth
- Ferrule Threaded
General
Eye Screw/T-Handle Installation Torque (in-lb) |
250 in-lb |
Ferrule Installation Torque (in-lb) |
250 in-lb |
Handle Type |
Eyescrew |
Jaw Type |
Smooth Jaws |
Material |
Bronze |
Terminal Connection Type |
5/8″-11 Thread |
Thread Size |
5/8-11 UNC |
UPC |
096359061021 |
Dimensions
Jaw Opening Size – Maximum |
.814 in |
Jaw Opening Size – Minimum |
.162 in |
Weight |
1.284 lb |
Electrical Ratings
Current Rating |
250 A |
Fault Current – 15 Cycles |
21000 A |
Fault Current – 30 Cycles |
15000 A |
Grounding Wire Capacity Maximum |
1/0 Cable w/ Threaded Terminal |
Grounding Wire Capacity Minimum |
#2 Cable w/ Threaded Terminal |
Certifications and Compliance
Fault Current – ASTM Grade |
ASTM Grade 2 |
