Ultra-durable UTILCO cutters and crimpers exceed utility demands. They’re precisely engineered and rigorously tested to endure grueling use and harsh environments while delivering the power, speed, efficiency, and ergonomics that make every job faster and easier. They’ll provide you with superior performance in any application, on any job site, for years to come.

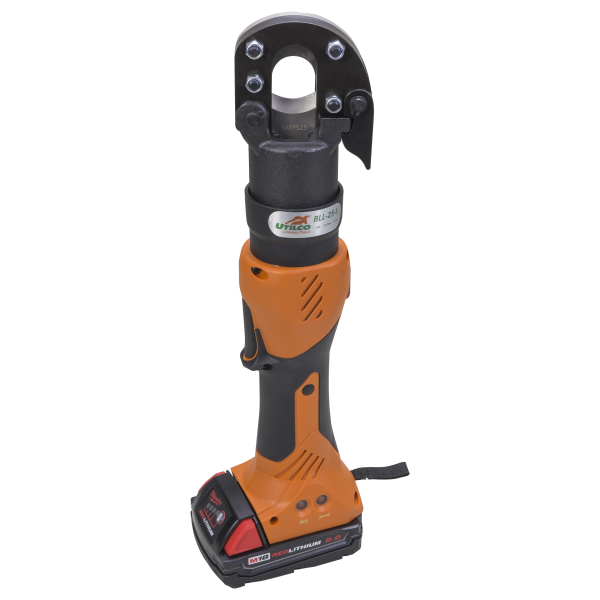

In-Line Tool 1″Steel Cut
• UtilPro five year tool warranty
• 18 V, 2 Ah Milwaukee Li-ion battery, 3 year warranty
• 360° tool head rotation
• DataTrack mini USB-port for connectivity
• Right or left hand ergonomic non-slip cushioned grip
• Multi-function 3 color LED indication lights
• LED battery charge indicator
Uses the Milwaukee battery.
Features
SmartCut / SmartCrimp Detection
Once a cut/crimp is made, pressure stops building and retraction is automatic, saving time, battery life and other components.
Pivoting Head
Rotates to 350 / 360 for easy manuvering at any angle and easy access to confined spaces.
WearSave Solenoid Activator
Greatly minimizes wear – compared to a mechanical system – and increases the number of cycles before maintenance required.
Enhanced Gearbox and Electric Motor
Minimizes vibrations, increases tool life, and makes servicing easier.
Gentle Motor Control
Programmed for gentle start/stop to increase durability.
HeatGuard Electronics
Minimized use of integrated components on the circuit board reduces the risk of overheating and prolongs tool life.
MotorCool Design
Optimized motor airflow for more effective cooling to increase tool life.
High-Performance Lithium-Ion Battery
Our top-of-the-line 18V lithium-ion battery is one of the most powerful, longest-running 2.0 Ah batteries available.
FastReturn Floating Valve (patent pending)
Our valve system uses pressure to aid release for faster retraction, extended solenoid life and better performance in cold weather.
Service Friendly
Solderless, plug-in connections make most repair and maintenance tasks faster and easier.
DataTrack USB Interface (patent pending)
Facilitates a comprehensive data exchange to record performance. Software enables analysis and remote troubleshooting. Design allows simple USB connection with no need for expensive adapters.
Durable Data Capture
Capture data over the life of the tool. 100,000 plus cycles.
FailSafe Start Button
Directly connected to the trigger by a pluggable connection with no linkage to fail, which improves reliability.
LED Display
Indicates tool status, including battery charge level and cycle data for easy and accurate diagnostics.
3-Piston Axial Hydraulic Pump
The components are in oil, providing precise pressure regulation and continuous lubrication for extended life.
Ergonomic Design
Perfectly balanced, lightweight and compact with a two-component handle and a non-slip cushioned grip.
| Tool Cat # | Cutting Capacity | |||||||
| Battery Powered Cutters | CU | AL | ACSR | GUY Strand | Guy Wire (EHS) | Ground Rod | Rebar | Lead Shield |
| BLL-40-IS | 1000 kcmil | 750 kcmil | N/A | N/A | N/A | N/A | N/A | N/A |
| BLL-26ACSR-IS | 656 | |||||||
| BLL-25-I | .98″ | .98″ | 556 | 1/2″ | 1/2″ (19 Strand)* | 1/2″ | 1/2″ Grade 40 | N/A |
| BLL-25-P | .98″ | .98″ | 556 | 5/8″ | 1/2″ | 5/8″ | 1/2″ Grade 40 | N/A |
| BLL-45-P | 1.77″ | 1.77″ | 1590 | 5/8″ | 1/2″ | 5/8″ | 1/2″ Grade 60 | N/A |
| BLL-50CU-P | 1.9″ | 1.9″ | N/A | N/A | N/A | N/A | N/A | N/A |
| BLL-65CU-PS | 1000 kcmil | 2.5″ | N/A | N/A | N/A | N/A | N/A | 2.5″ |
| BLL-85CU-P | 3″ | 3″ | N/A | N/A | N/A | N/A | N/A | 3″ |
| BLL-95CU-PS | 1000 kcmil | 3.5″ | N/A | N/A | N/A | N/A | N/A | 2.5″ |
| BLL-120CU-PS | 1000 kcmil | 4.5″ | N/A | N/A | N/A | N/A | N/A | N/A |
