The 1542-2AS Series Stripper is designed to strip insulation from power cable, as well as score the cable’s semi-conductive outer shield with precise accuracy. All features of the 1542-2CL Speed Stripper and 1700 Semi-Con Scorer are combined into this tool.

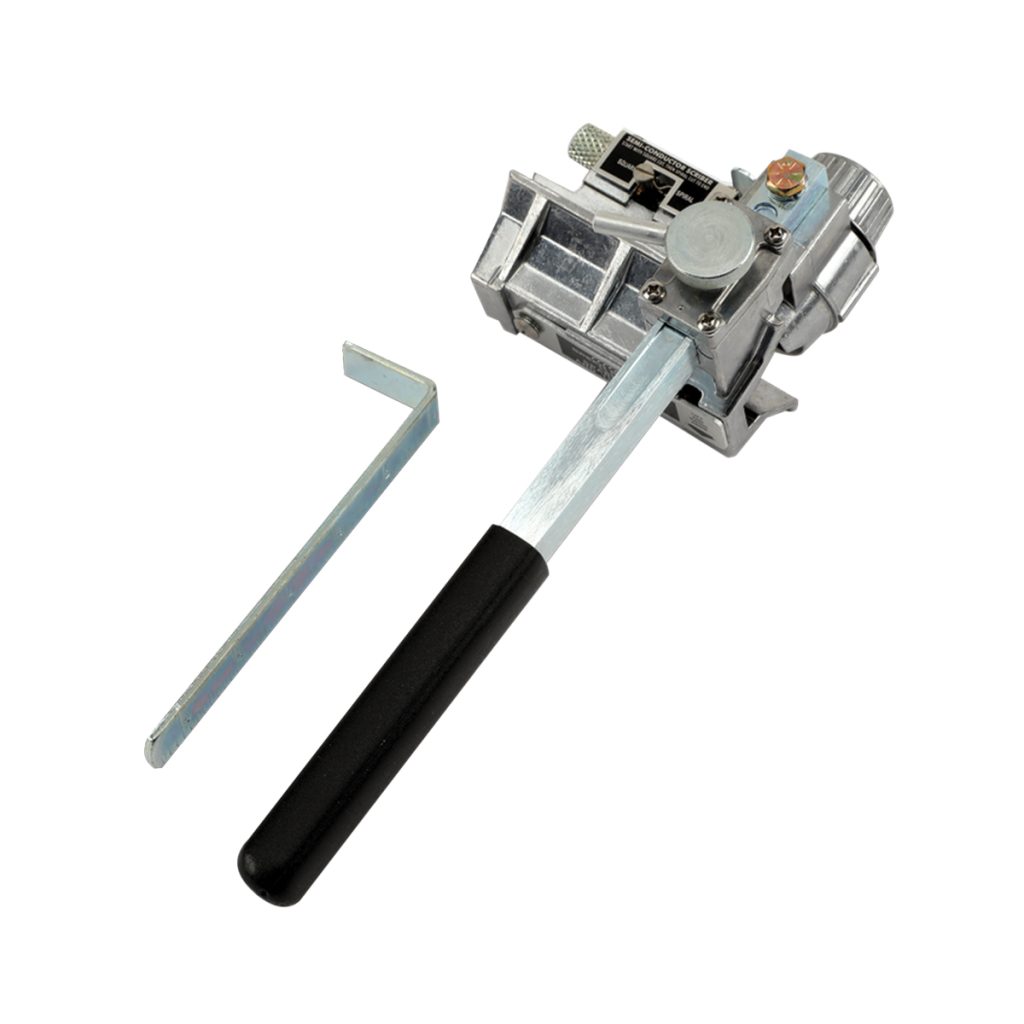

Tool with Wedge Blade installed, spare Wedge Blade
Features
- Strips Cable insulation
- Precise blade depth adjustment
- Maximizes reliability of installation
- Provides greater speed and increased safety
- No bushings required
- Dual functions – strips cable insulation and scores semi-con
- Adjustable semi-con scoring .001″ to .090″
- Combines features of 1542-2CL and 1700SS
- Includes 1646X Scale Gauge
- kV Class / Conductor Size:
- 5kV / 1000 MCM and smaller
- 15kV / 750 MCM and smaller
- 25kV / 350 MCM and smaller
- 35kV / 3/0 and smaller
General Cable O.D. Range 1/2″ – 1-3/4″ (12.7 – 44.5 mm), but refer to kV/Conductor Guidelines in Features section
(Note: handle no longer contains ring)
