Features and benefits
- System Component Options:
- Orange Drive Wrench (#SAE09639)
- Yellow Drive Wrench (#SAE08666)
- Drive Wrench Lock (#SAE10425)
- 1.5 in Square Shank Bolted Assembly (#SAE13513)
- 2.5 in Hex Kelly Bar Adapter (#SAE10486)
- 2.625 in Hex Kelly Bar Adapter (#SAE10427)
- 1.5 in Square Shank Anchor Tool (#SAE11132)

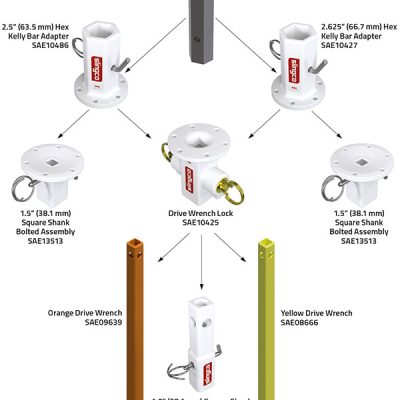

10K Drive Wrench Assembly for installation of screw anchors. Complete tool system has Drive Wrench options, Wrench Locks, and Adapters.
Slingco’s Hex Kelly Bar Adapters are a key component in the Drive Wrench Assembly. The adapters are used to connect the Drive Wrench Lock Assembly to the Kelly Bar of the bucket truck. There are two versions available which fit the most common drive bar dimensions.
Slingco’s Drive Wrench Lock Assembly attaches to the adapter and makes the installation of the anchor rod much easier. The three-position rings allow for easy capture of the Drive Wrench and the anchor rod, holding them securely while under torque, and releasing each when needed.
Slingco offers a 1.5″ Square adapter and bolted assembly for 1/5″ square screw anchors.
Slingco’s Drive Wrenches are designed to allow anchor rods to telescope inside them, and securing to the Drive Wrench Lock Assembly. The Drive Wrench transfers the torque from the drive motor to the screw anchor. Rated to 10,000 ft-lb of torque, Slingco’s Drive Wrenches are tough and can handle anchor installs in tough environments.
