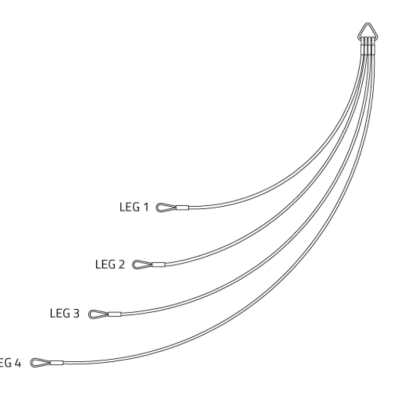

This staggered pulling sling is designed to allow the pulling of multiple conductors at the same time while minimizing the overall diameter of your pulling bundle. These pulling slings come in a three leg or four leg versions. One should use a swivel for each leg and at the head of the sling to release torsion and allow the conductors to rotate freely. The suggested swivels are listed with each model.
Features and benefits
- For simultaneous pulling multiple conductors
- Helps to minimize the size of the pulling bundle
- Available in 3 or 4 leg versions
| Slingco Part No. | Leg 1 Length (in) | Leg 2 Length (in) | Leg 3 Length (in) | Leg 4 Length (in) | Head of Sling Swivel Suggestion | Leg Swivel Suggestion |
|---|---|---|---|---|---|---|
| ZSH2264 | 20.5 | 34.65 | 52.75 | n/a | ZSW2092 | ZSW2091 |
| ZSH2265 | 20.5 | 34.65 | 52.75 | 69.3 | ZSW2092 | ZSW2092 |
