Heavier duty slitting tool designed to assist in the removal of outer sheathing and primary insulation on low and medium voltage power cables.
Overview

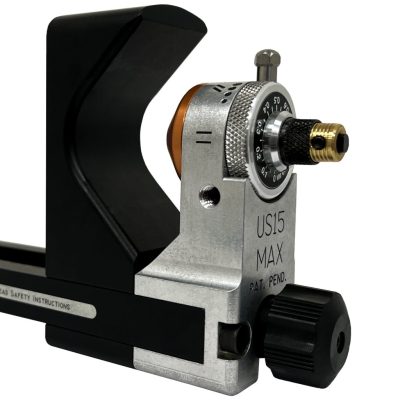

Introducing the new US15 PRO MAX Large Format Slitting Tool, capable of performing slit, ring, and spiral cuts on cable diameters from 38 to 80 mm. Equipped with a high-grade steel blade, the versatile tool provides fast, safe, and precise jacket removal from both hard and soft insulated cables without damaging the underlying layers.
- Equipped with safe, recessed blade to prevent potential injury & blade damage
- Compatible with various insulated materials such as PE, XLPE, PVC, EPR, silicon rubber, EPDM and TGGT
- Easily adjust the blade position to perform ring, spiral & longitudinal cuts
- Quickly adjusts to suit hard & soft insulated cables with 1.50” to 3.15” (38 mm – 80 mm) diameter
- Blade depth knob adjusts up to 0.216″ (5.5 mm) in increments of 0.002″ (0.05 mm) & features a convenient inch or metric scale for guaranteed precision
- Replaceable, machined & ground tool steel blade
- Reinforced diameter adjustment jaw is durable & travels on a threaded rod to provide precise stability between the blade & jacket
