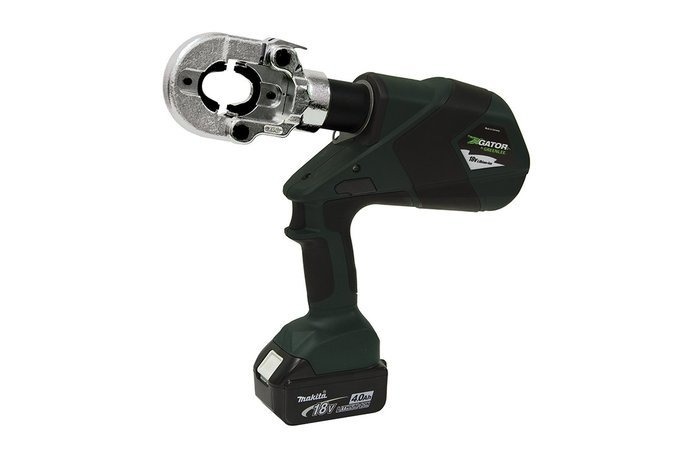

Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelli-CRIMP™ System Auto Retraction Stop prevents full retraction for faster cycle on multi-crimp connectors. Single Trigger tool automatically retracts after successfully completing cycle. Gator Eye™ compatible – download work history logs, perform diagnostics and add inventory information. Compatible with both U and W style dies
Specifications
| Sub Brand | Gator |
| Type | Die style crimper |
| Application | U die and W die crimping |
| Standard | C/US UL Listed |
| Wire Size | 8 AWG – 600 kcmil Cu |
| Wire Size | 8 AWG – 350 kcmil Al |
| Overall Length | 15.75 IN (438mm) |
| Crimping Force | 12,000 lbs. (53 kN) |
| Crimping Capacity | 600 kcmil (MCM) Copper |
| Crimping Capacity | 350 kcmil (MCM) Al |
| Connector Type | Color-coded lugs and splices |
| Handle Type | Pistol Style with over molded rubber grip |
Support Documents
Operator’s Manual
52080014 (488.05 KB)
Service Manual
Brochure
