- The First Electromechanical Crimping Tool with PowerSense Technology which allows you to hold your work during preparation before starting the crimp
- Intelligent Crimping System Technology monitors amp draw for each crimp and provides a visual alert if a crimp does not complete a full cycle
- 90% Hand force reduction
- 65% faster crimping cycle versus ratcheting tool
- 10.8V Li-Ion Battery can perform up to 250 crimps on one battery charge
- LED Battery level indicator allows the user to monitor battery charge so they always know when the battery needs to be recharged
- LED work light allows the user to illuminate their work in dark areas
- When crimping is complete, simply release the trigger to open the jaws for the next crimp
- Over molded tacky grip area makes gripping the tool easier and more comfortable
Specifications
| Battery | 10.8V 1.5Ah Li-Ion |
| Battery Charger | MBC110, MBC220, 110V or 220V CHARGER AVAILABLE |
| Battery Charge Time | 40 Minutes |
| Crimp Cycle Time | 1.3 Sec |
| Crimping Force | 3,400 LB (15kN) |
| Estimated Cycles per Charge | 250 |
| Handle Type | Rubber Overmold |
| Height | 9 IN |
| Material Master Number | EK50ML120B |
| Overall Length | 9” |

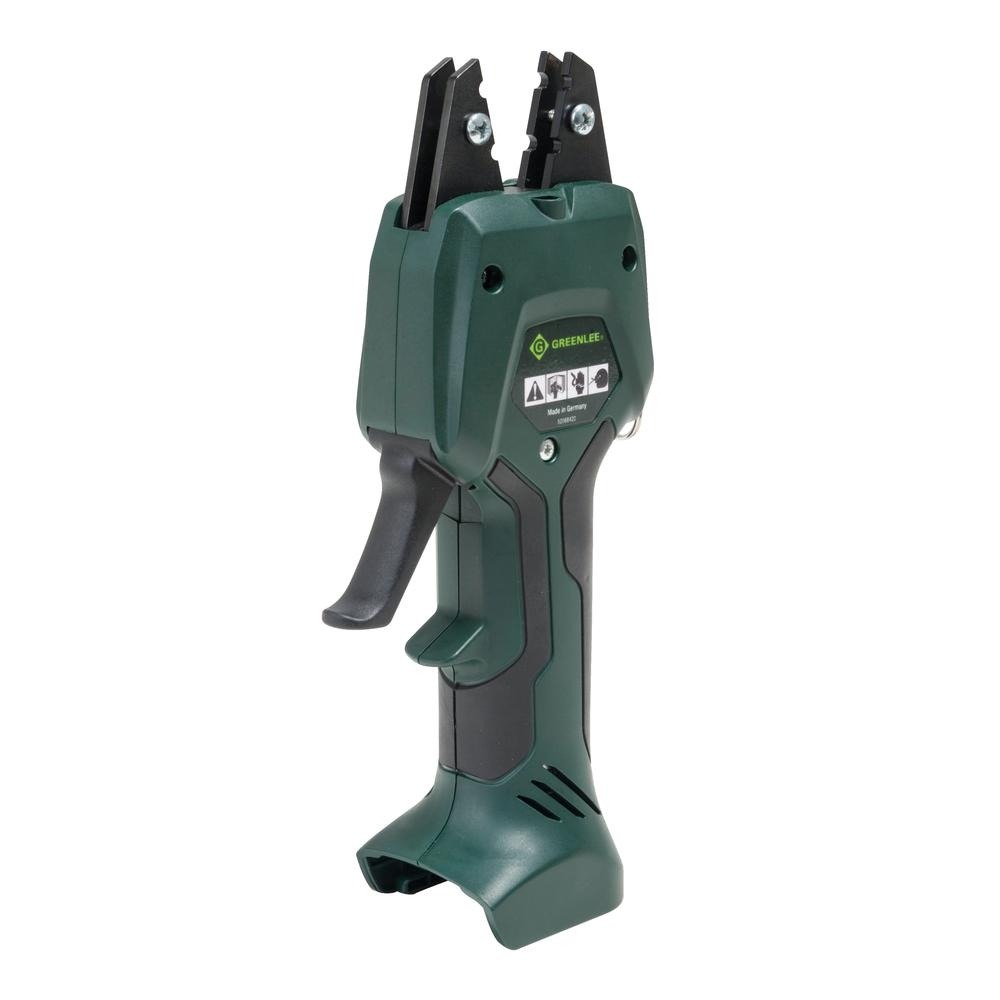

| Short Description | BARE CRIMPING TOOL, EK50ML120B |
| Type | Battery Powered |
| Weight | 1.7 LB |
