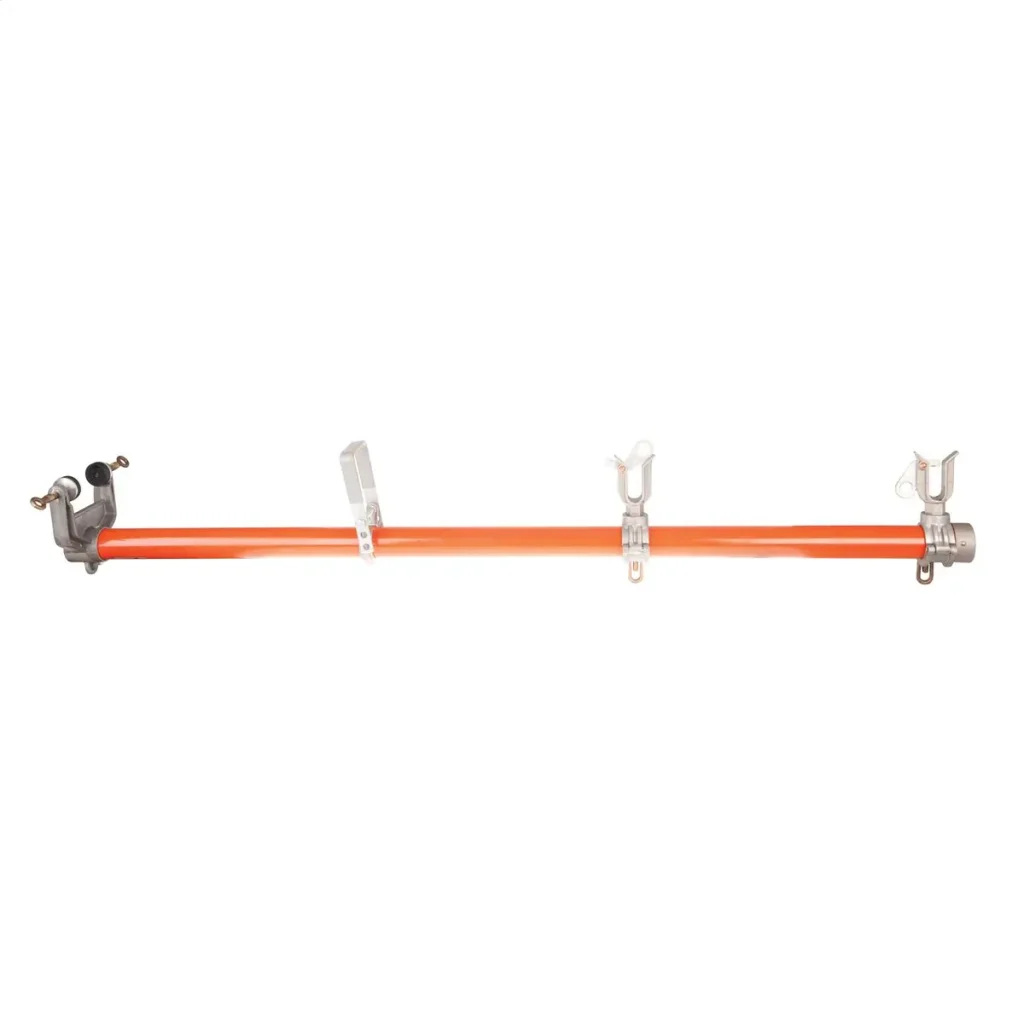

The Epoxiglas® Extension Arm is designed for use on voltages up to and including 15 kV where reconductoring or insulator replacement is necessary.
Fits composite or wood crossarms up to 33/4″ x 43/4″
Cushioned clamp and hanger loop to protect composite arms
Grippers on clamp can be removed for wood crossarms
Design allows removal of components for reconditioning pole
Design for use with rubber gloves or hot sticks
Overview
The Epoxiglas® Extension Arm is designed for use on voltages up to and including 15 kV where reconductoring or insulator replacement is necessary. The Epoxiglas Extension Arm can be used on voltages up to 34.5 kV providing the wireholders are fitted with M4805-7 insulators. The Extension Arm is suspended under the crossarm by brackets to enable to conductor to be removed from the original crossarm and placed in the wireholder mounted on the Epoxiglas Extension Arm.
- Extension Arm installed on crossarm. Unit is shown here equipped with M4805-7 insulators on the wireholders. Order insulators separately.
General
| Duty | Standard Duty |
| Number of Wireholders | 2 |
| Type | Arm |
| UPC | 09635904092 |
Dimensions
| Weight | 18.62 lb |
