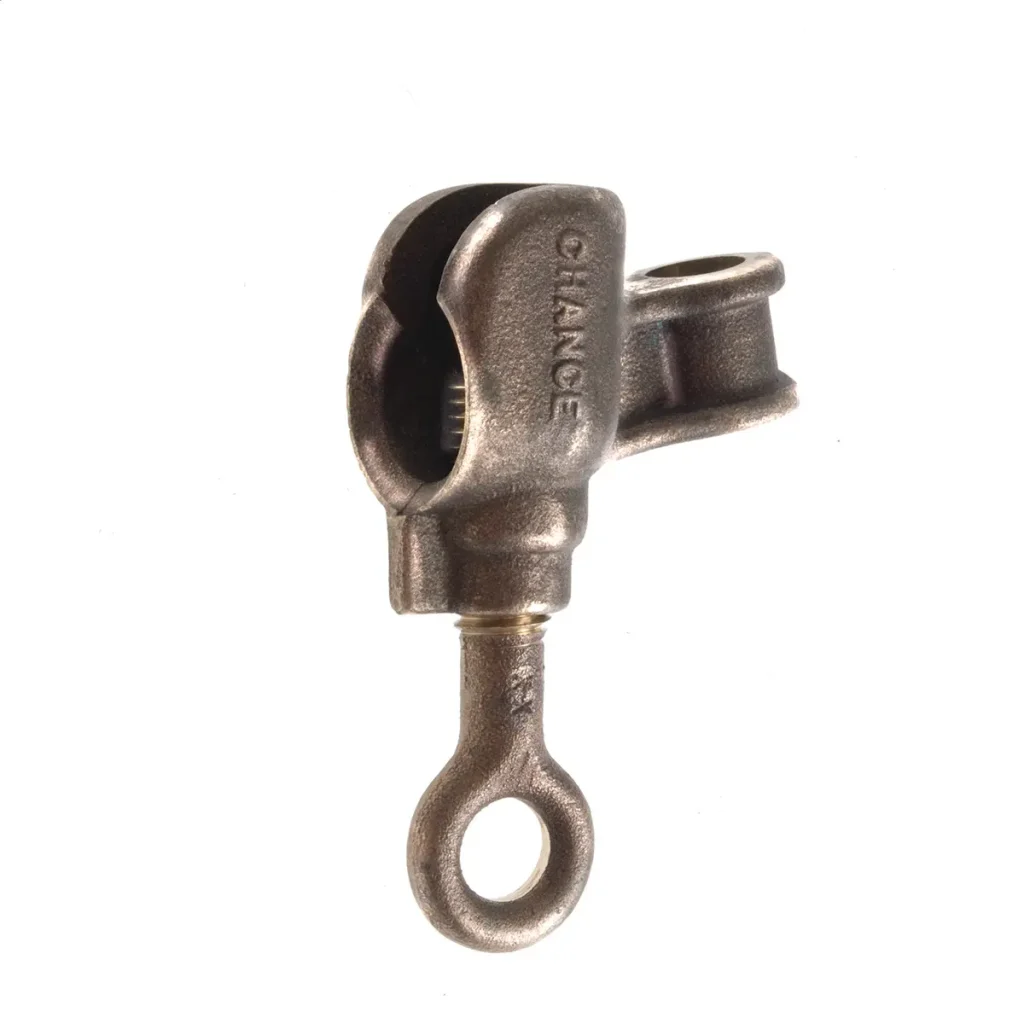

Chance C6002101 Socket Ground Clamp

Login to view prices

Shipping charge is added to invoice once known.

Typically STOCKED at Arnett

Call to confirm price & availability: (503) 692-4600 or email [email protected]

SKU: C-C6002101 Category: Tag:

For restricted-space applications and as a truck-grounding system, this compact design delivers a high-current rating usually associated with only large clamps. It applies to a wide range of switching equipment, including: Industrial metalclad gear, Substations — indoors and out, Distribution — overhead and underground. For trucks, a *ball stud permanently mounts on each body. Two clamp styles and two ball-stud lengths adapt to many applications. Clamp bodies and eyescrews are a bronze alloy.

Product Specifications
 Product Type  Grounding Clamps
 Configuration  Single Clamp
 Product  Ball Stud Clamp
 Fault Current Rating  ASTM Grade 5
 Material  Bronze
 Terminal Type  5/8″-11 Thread
 Handle Type  Eyescrew
 Continuous Current  400 Amps
 Fault Current – 15 cycles  43,000 Amps
 Fault Current – 30 cycles  30,000 Amps
 Recommended Torque  250 in-lbs (339 N-M)
 Jumper Range – Maximum  4/0 Cable w/ Threaded Terminal
 Jumper Range – Minimum  #2 Cable w/ Threaded Terminal
 Material Type  Standard
 UPC Code  09635902418
 Standard Package  1
 Standard Package Unit  Each
 Min Order Qty  1
 Weight / Ea.  0.96 lbs

Chance part#: C6002101

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
