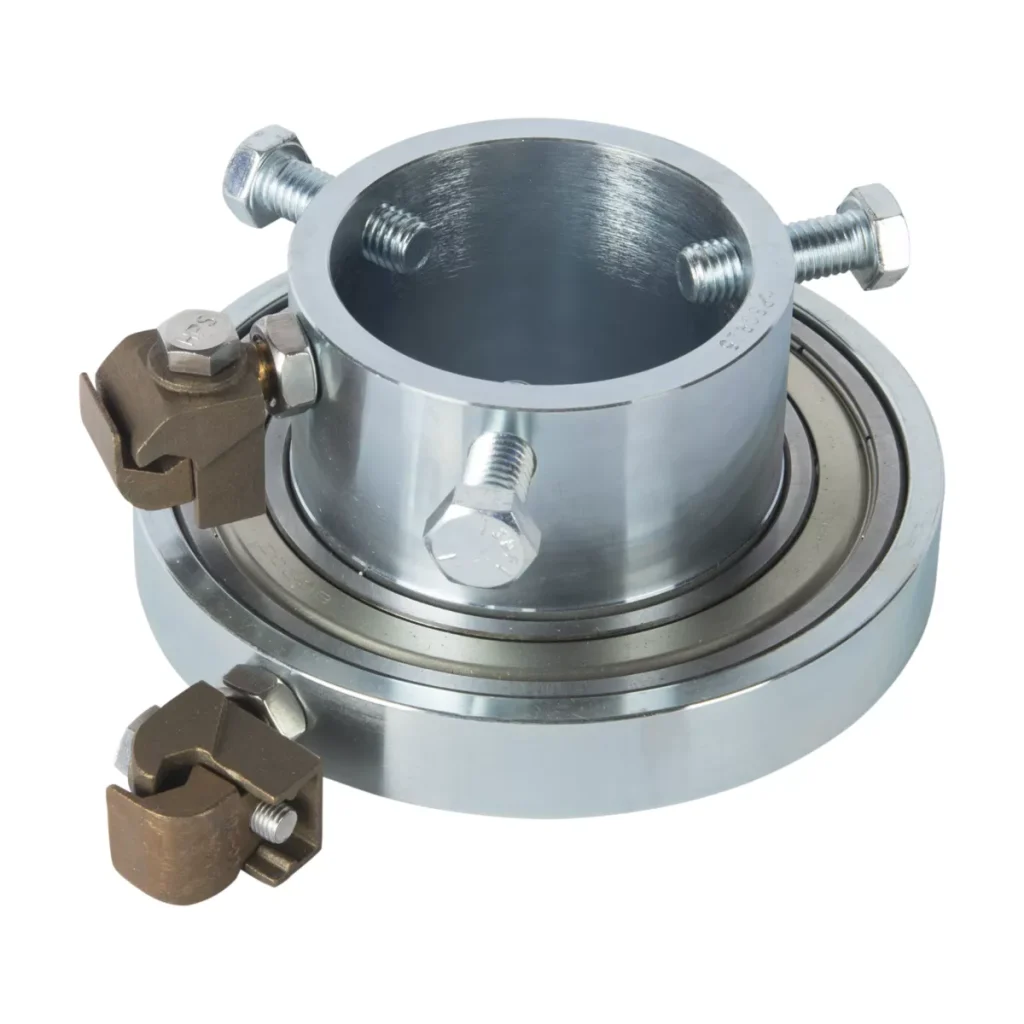

Rotating Ground Adapter for Reels with Vise-type connectors
- Provide system protection while conductor is pulled from reels for stringing operations By design, the system adds conductor grounding but does not replace other grounding practices
- This includes items such as CHANCE Equi-Mat® personal protective ground grids
- System serves as intended path to ground for static discharge and accidental energizing from downed lines, equipment contact, adjacent conductors and lightning
- ASTM Grade 1
- Pipe Diameter Max: 3-3/16″
- Connector Type: Bronze Vise Type Connector Range: 3 Sol. to 4/0 Str.
General
| EU RoHS Indicator |
No |
| UPC |
096359313113 |
Dimensions
Certifications and Compliance
| Fault Current – ASTM Grade |
Grade 1 |
| Industry Standard(s) |
ASTM F855 |
