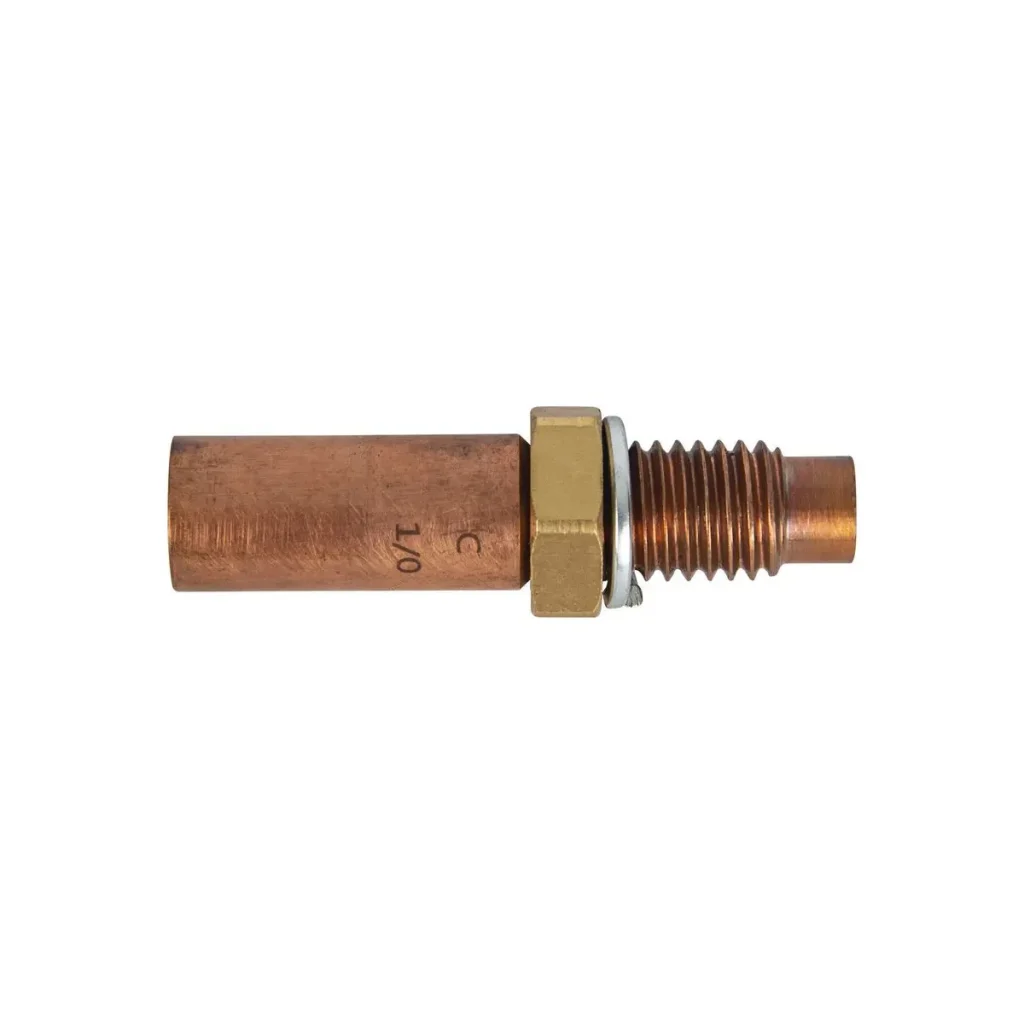

Chance Jumper Ferrule for 1/0 cable, unshrouded
Copper Connector Assemblies are necessary to join cable and clamp together on Jumper Clamps or Load Pickup Tools only. Threads are .625″-11 NC for all connectors. Each Catalog Number consists of a copper connector, nut and lockwasher.
| Product Specifications | |
|---|---|
| Â Product Type | Â Jumpers/Load Pick Up |
| Â Tool Type | Â Jumper Ferrule |
| Â Style | Â Standard |
| Â Cable Size | Â 1/0 |
| Â Terminal Threads | Â 5/8″ – 11 UNC |
| Â Burndy Die No. | Â U165 |
| Â Continuous Current | Â 260 Amps |
| Â Material Type | Â Non-Standard |
| Â UPC Code | Â 09635923288 |
| Â Standard Package | Â 10 |
| Â Standard Package Unit | Â Each |
| Â Min Order Qty | Â 1 |
| Â Weight / Ea. lbs | Â 0.284 lbs |
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
