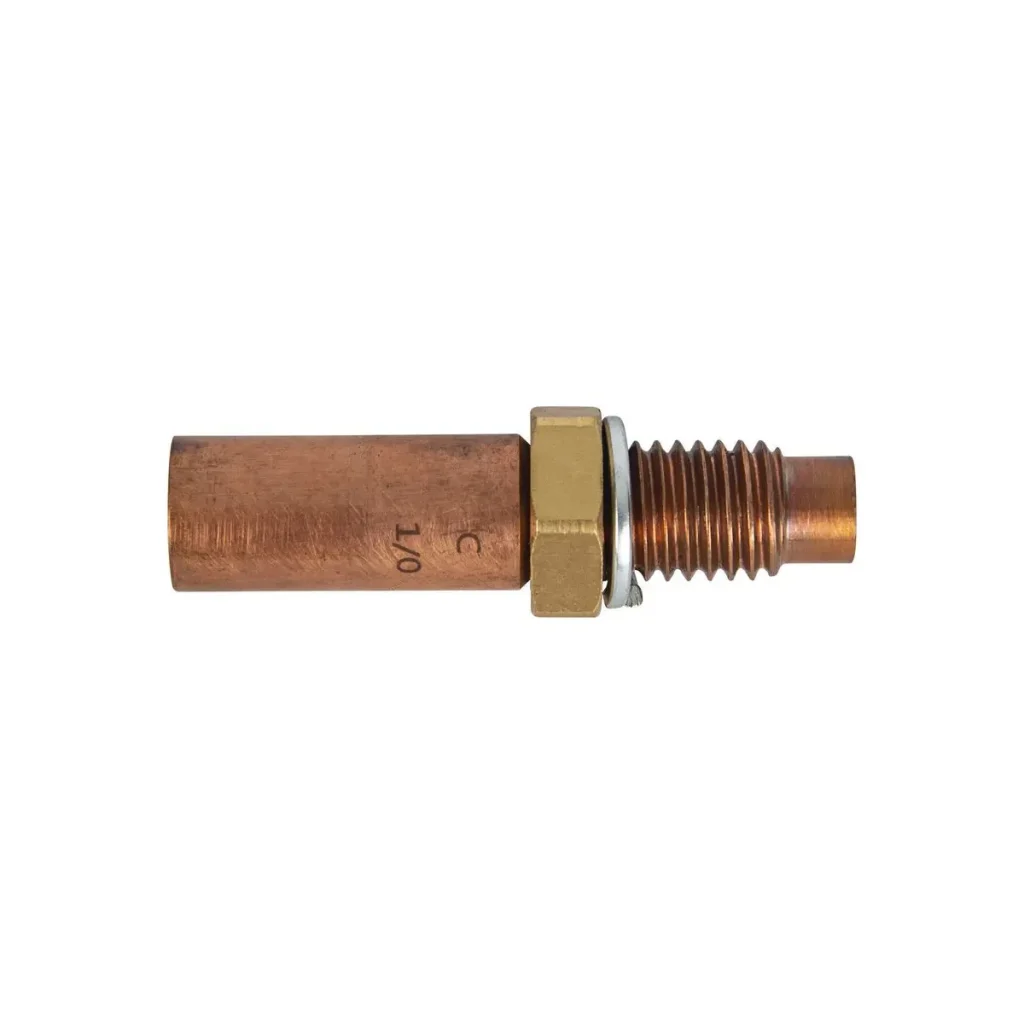

Chance Jumper Ferrule for 1/0 cable, unshrouded
Copper Connector Assemblies are necessary to join cable and clamp together on Jumper Clamps or Load Pickup Tools only. Threads are .625″-11 NC for all connectors. Each Catalog Number consists of a copper connector, nut and lockwasher.
| Product Specifications | |
|---|---|
| Product Type | Jumpers/Load Pick Up |
| Tool Type | Jumper Ferrule |
| Style | Standard |
| Cable Size | 1/0 |
| Terminal Threads | 5/8″ – 11 UNC |
| Burndy Die No. | U165 |
| Continuous Current | 260 Amps |
| Material Type | Non-Standard |
| UPC Code | 09635923288 |
| Standard Package | 10 |
| Standard Package Unit | Each |
| Min Order Qty | 1 |
| Weight / Ea. lbs | 0.284 lbs |
