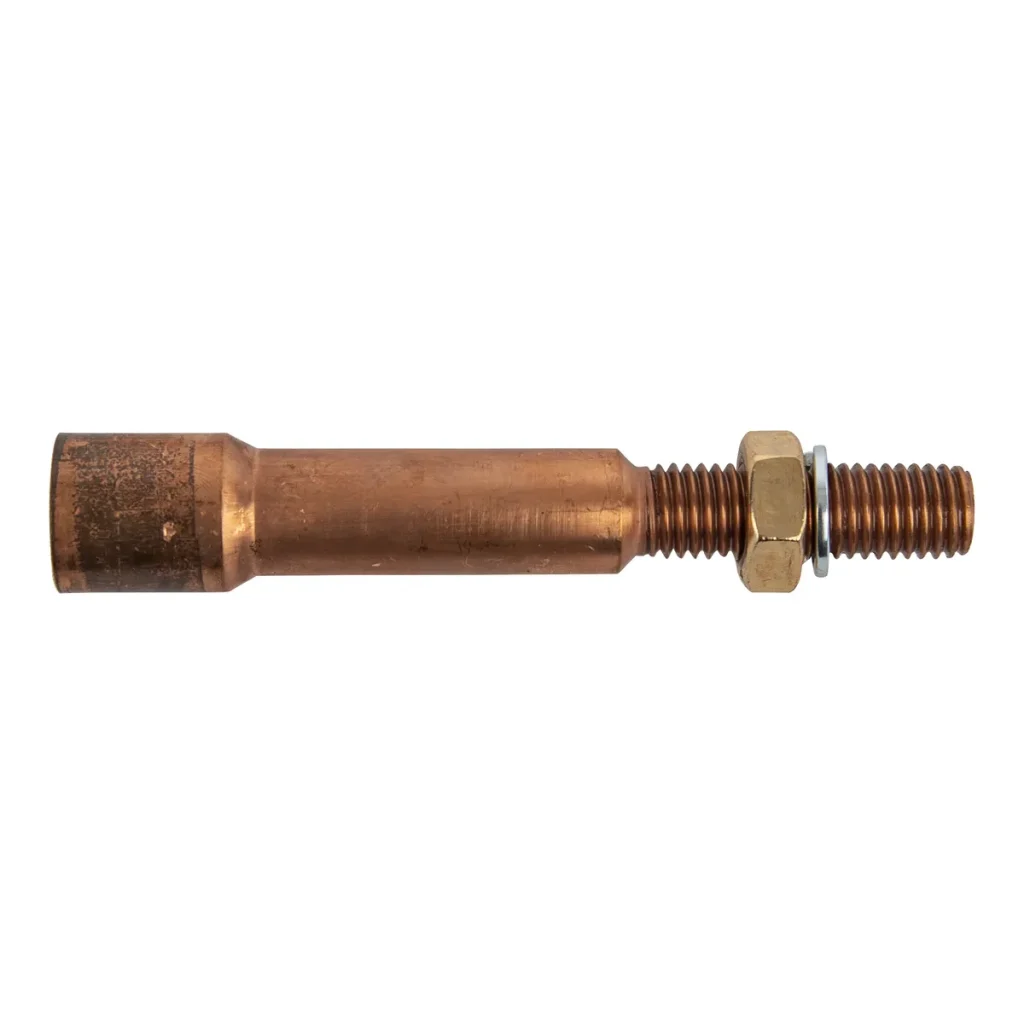

Chance C6002625 Grounding Ferrule for 4/0 Cable (Shrouded)- Threaded or Drilled Terminal

Login to view prices

Shipping charge is added to invoice once known.

Chance part#: C6002625

Call for availability: (503) 692-4600

We have a minimum order of $50.

SKU: C-C6002625 Categories: , Tag:

Chance shrouded ferrules overlap onto the grounding cable jacket for stress relief to the terminal. Two crimps secure the ferrule against the bare strands and one crimp applies on the jacket. Available either factory-installed in pairs on any cable length specified or as separate individual units, the ferrules install simply with a hydraulic crimping tool. Complete illustrated installation instructions come with the ferrules and include a table for the crimping die sizes to use.
Copper Grounding Ferrule

roduct Specifications
 Product Type  Ferrules
 Cable Size  4/0
 Material  Copper
 Terminal Type  Threaded or Drilled
 Shroud  Shrouded
 Continuous Current  400 Amps
 Fault Current – 15 cycles  43,000 Amps
 Fault Current – 30 cycles  30,000 Amps
 Section A Burndy Die Number  U166
 Section B Burndy Die Number  U-L
 Material Type  Standard
 UPC Code  09635923318
 Standard Package  10
 Standard Package Unit  Each
 Min Order Qty  1
 Weight / Ea.  0.431 lbs
