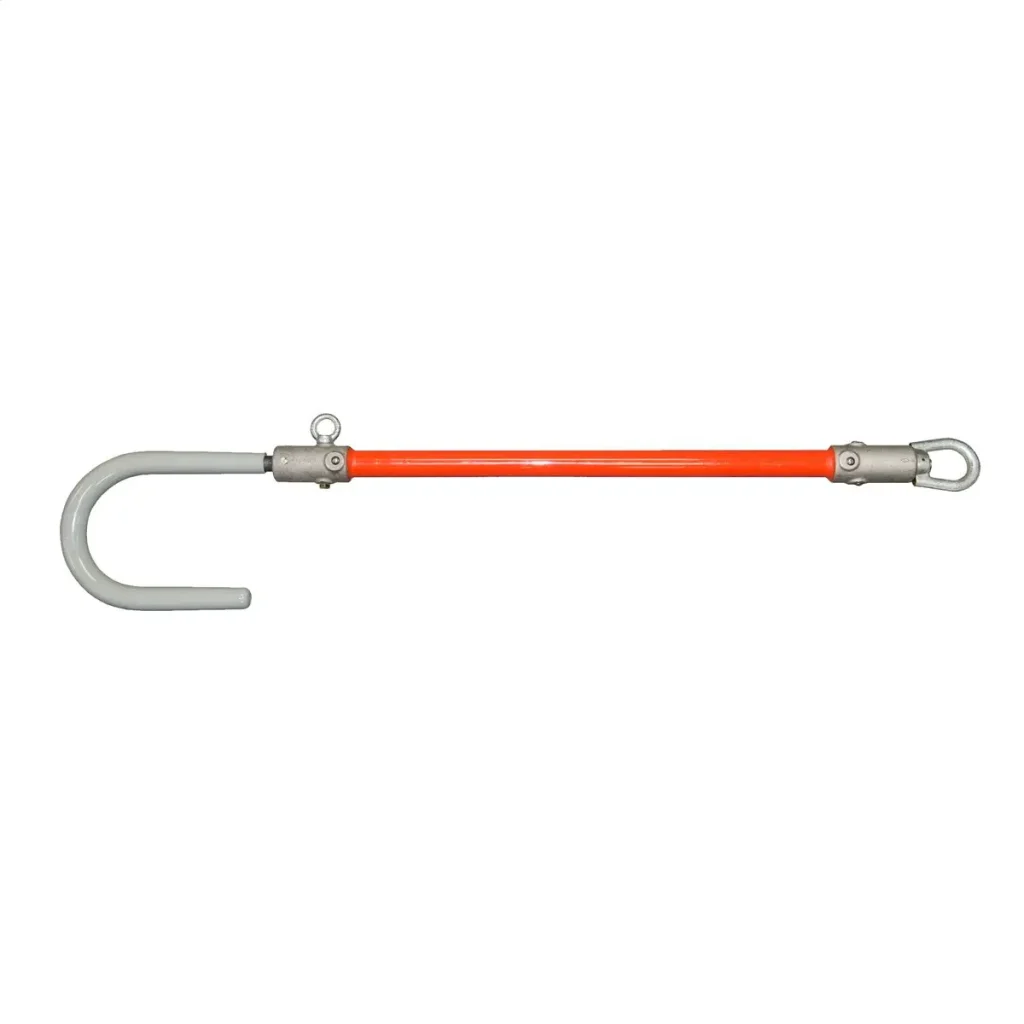

The CHANCE® Crossarm Link Stick provides a 1,500 lb. working load limit. It hooks over a dead-end crossarm (up to 3.75 in x 4.75 in) on one end and provides a butt swivel on the other end that allows for connection with a hoist for the purpose of providing quick set-up for tension relief to a dead-end insulator or other component. No hassles connecting a sling.
- 1-1⁄4”-diameter Epoxiglas ™ pole with 21-1/2” insulating length
- Plastisol-coated 3/4”-diameter steel hook
- Hook’s 5” opening fits standard 3-3/4” x 4-3/4” crossarms
- Galvanized-steel swivel eye on pole end for easy alignment
- Lifting eye on hook fitting for positioning by a hot line tool
- Rated working load: 1,500 lb. and 3,500 lb.
General
| Color |
Gray |
| Max Load Lbs. |
1500 lb |
| Style |
Crossarm Link Stick |
| Swivel Top? |
Yes |
| UPC |
096359575818 |
| Working Load Limit |
1,500 lb |
| Working Load Limit Metric |
680 kg |
Dimensions
| Dimensions |
21.5 in x 5 in x 5 in |
| Height |
5 in |
| Length |
21.5 in |
| Length – Insulated Section |
21.5 in |
| LengthMetric |
546 mm |
| Weight |
8 lb |
| WeightMetric |
3.6 kg |
| Width |
5 in |
