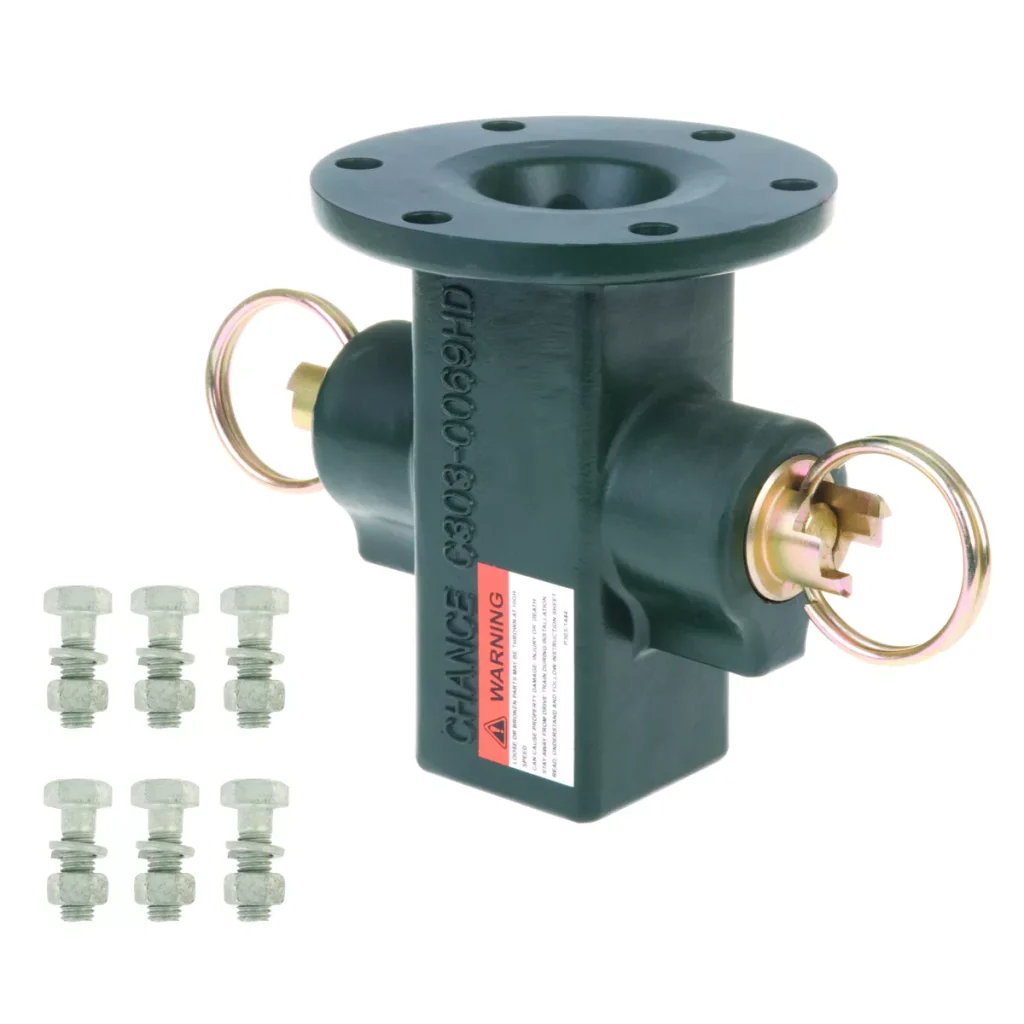

Complete Standard Locking Dog Assembly.
Ensure your crews are ready to properly and safely install anchors by selecting CHANCE anchors and installation tooling.

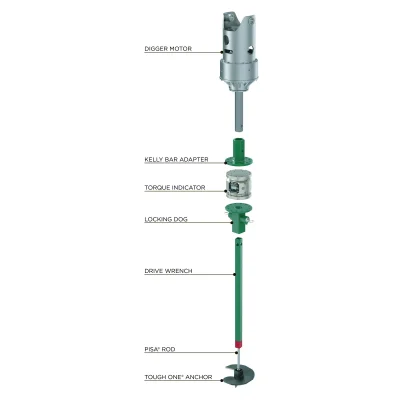

- Locking Dog Assembly bolts to Kelly Bar Adapter and attaches to Anchor Drive Wrench
- STANDARD Locking Dog Assembly has six holes for 1/2″ bolts on a 5-1/4″ bolt circle, comes with six 1/2″ Grade 5 bolts, nuts and lock washers.
Product Details
General
| Application | Anchor/Pile Installation |
| Bolt Grade | 5 |
| Coating | Painted |
| EU RoHS Indicator | No |
| Number of Bolt Holes | 6 |
| Torque Rating | 10000 ft-lbs |
| Type | Anchor/Pile Installation Tools |
| UPC | 096359014867 |
Dimensions
| Anchor Installation Hole Size | 0.5 in |
| Diameter – Bolt | 0.5 in |
| Diameter – Bolt Circle | 5.25 in |
| Dimensions | 9.000 in x 9.000 in x 6.000 in |
| Height | 6.000 in |
| Length | 9.000 in |
| Weight | 20.580 lb |
| Width | 9.000 in |
