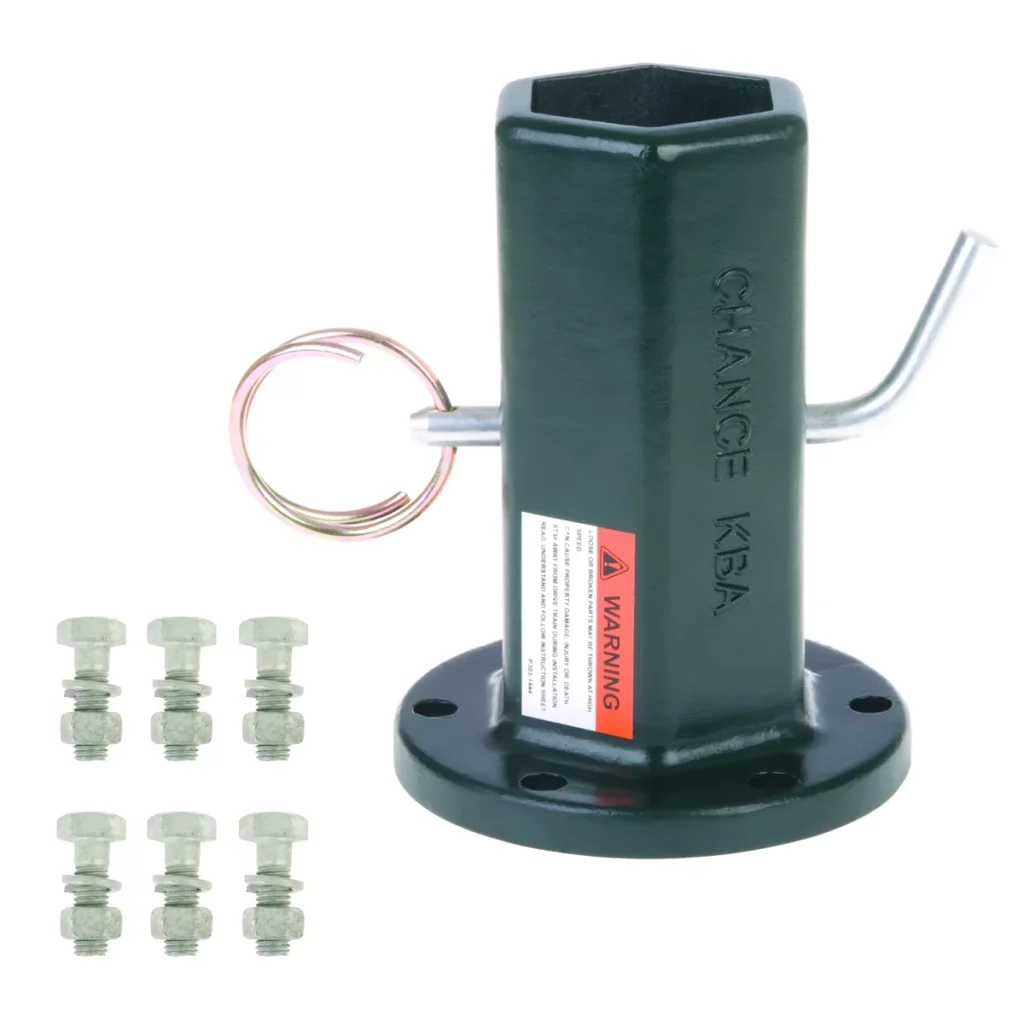

Standard Kelly Bar Adapter 10,000 Ft Lbs (13,558 N-M) for 2″ (50.8 mm) Hex Kelly Bar.
Kelly Bar Adapters attach to the digger/torque motors square or hex shape drive shaft to install anchors or piles. Chance Kelly Bar Adapters are cast steel and painted green. They come with a Bent Arm Pin used to attach the adapter to digger/torque motor.
- Kelly Bar Adapter attaches to truck’s torque motor drive shaft (Kelly Bar)
- Locking Dog Assembly has six holes for 1/2″ bolts on a 5-1/4″ bolt circle, comes with six 1/2″ Grade 5 bolts, nuts and lock washers
- Painted with green paint
- Includes Bent Arm Pin and Coil Lock
Product Details
General
| Application | Anchor/Pile Installation |
| Bolt Grade | 5 |
| Coating | Painted |
| EU RoHS Indicator | No |
| Kelly Bar Shape | Hex |
| Number of Bolt Holes | 6 |
| Torque Rating | 10000 ft-lbs |
| Type | Anchor/Pile Installation Tools |
| UPC | 096359227441 |
Dimensions
| Anchor Installation Hole Size | 0.5 in |
| Diameter – Bolt | 0.5 in |
| Diameter – Bolt Circle | 5.25 in |
| Dimensions | 7.31 in x 6.500 in x 7.310 in |
| Height | 7.310 in |
| Kelly Bar Adapter Inside Width | 2 in |
| Kelly Bar Hole Distance to Flange | 5 in |
| Length | 7.31 in |
| Weight | 9.800 lb |
| Width | 6.500 in |
