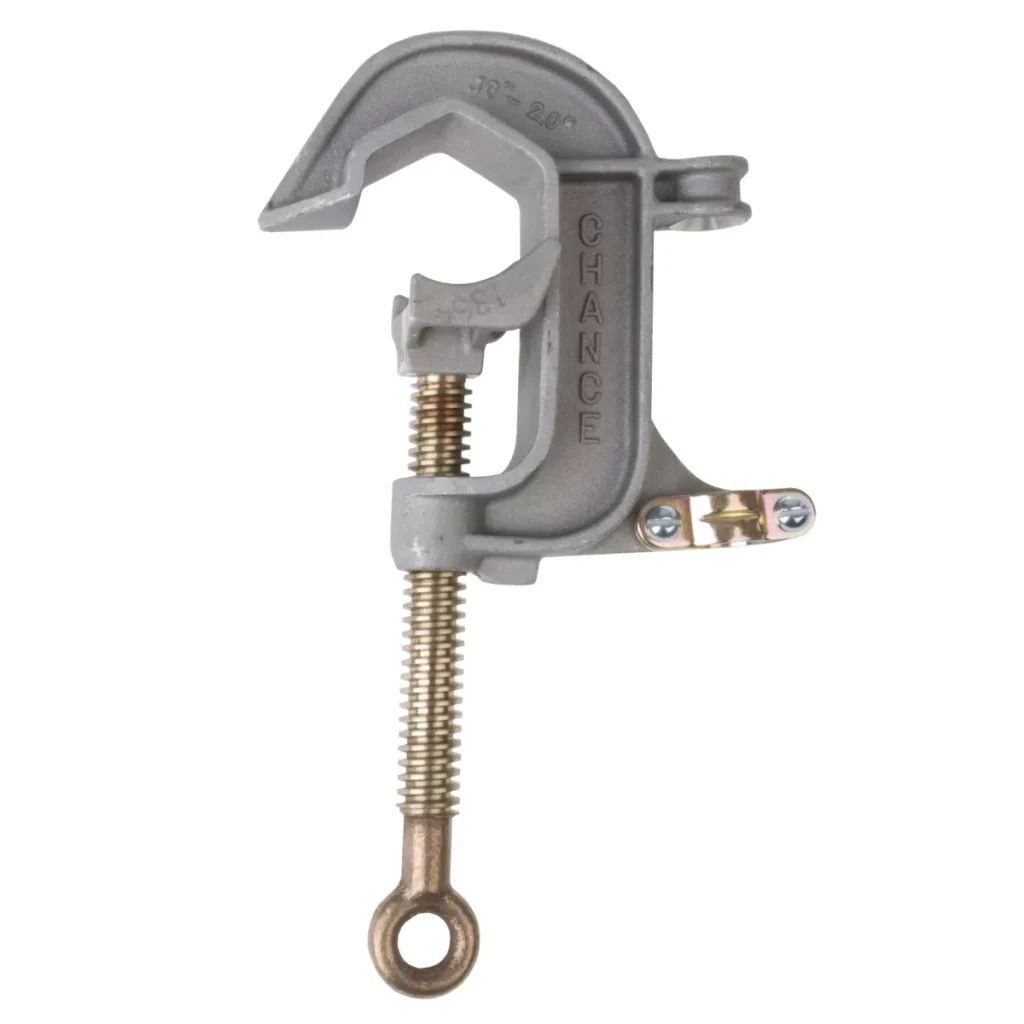

Ground Clamp, C-Type, Type I-Class A-ASTM Grade 5H, IEC Rating 35kA (15 Cycles), 2.0″ Jaw Opening
- C-Type Ground Clamp
- Continuous Current 400A
- Fault Current 47kA, X/R=30
- Main Line Range 2″ O.D. Bus
- Main Line Range Min. #6 Sol. CU (0.162″)
- Jumper Range Max. 4/0 Grd. Cable
- Jumper Range Min. #2 Grd. Cable
- ASTM Type I, Class A, Grade 5H
- IEC Rating 35kA (15 Cycles)
- Jaws Smooth
- Ferrule Threaded – Unshrouded Only
General
| Eye Screw/T-Handle Installation Torque (in-lb) |
250 in-lb |
| Ferrule Installation Torque (in-lb) |
250 in-lb |
| Handle Type |
Eyescrew |
| Jaw Type |
Smooth Jaws |
| Material |
Aluminum |
| Terminal Connection Type |
5/8″-11 Thread |
| Thread Size |
5/8-11 UNC |
| UPC |
096359024354 |
Dimensions
| Jaw Opening Size – Maximum |
2 in |
| Jaw Opening Size – Minimum |
.162 in |
| Weight |
1.96 lb |
Electrical Ratings
| Current Rating |
400 A |
| Fault Current – 15 Cycles |
47000 A |
| Fault Current – 30 Cycles |
30000 A |
| Grounding Wire Capacity Maximum |
4/0 Cable w/ Threaded Terminal |
| Grounding Wire Capacity Minimum |
#2 Cable w/ Threaded Terminal |
Certifications and Compliance
| Fault Current – ASTM Grade |
ASTM Grade 5H |
