PATMD-LW IN-LINE® 6T Scissor Action, No Batteries, No Charger, Utility Bag

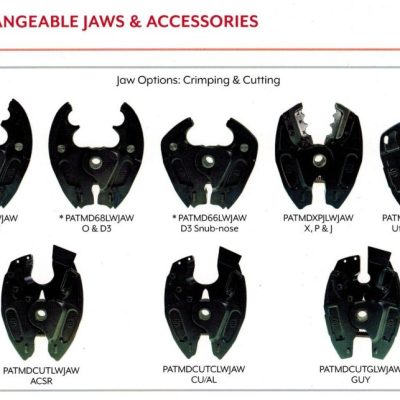

The 6-Ton PATRIOT® IN-LINE® PATMD-LW is a scissor action series offering eight (8) interchangeable crimping and cutting jaws with patented locking jaw tabs. This combination of specifically designed jaw options provides an overall capability to crimp #10 AWG – 500 kcmil with the use of permanent jaw grooves and/or W and X style dies, also to cut up to 556.5 ACSR, 636 kcmil Aluminum, 600 kcmil Copper and 3/8” diameter EHS Guy Wire. The PATMD-LW features 355° head rotation, safety trigger lock, LED Worklight, and ergonomically balanced tool design to ensure versatility for the user.
- Interchangeable scissor action crimping and cutting jaws available
- 355° Head rotation
- Uses W and X dies
- Safety trigger lock and locking jaw tabs
- LED Worklight
- Accepts 2.0Ah-6.0Ah 18V lithium-ion Makita batteries
5 year limited warranty (excluding blades), Lifetime warranty on INFINITY DRIVE®, 3 year warranty on batteries and charger
General
| Application |
Crimping and Cutting |
| Application – For Use On |
Interchangeable Jaws: Crimp: ACSR, Aluminum, Copper Code/Flex; Cut: ACSR (26/7), Aluminum (AAC), Copper (Soft Drawn), EHS Guy Wire (sold separately) |
| Battery Type |
No Batteries Included (Accepts 2.0Ah-6.0Ah Makita LI Batteries) |
| Container Type |
Vinyl Utility Bag |
| Crimp Force Capacity |
6 ton |
| Die Type |
W Die and X Die |
| EU RoHS Indicator |
Contact Manufacturer |
| Power Source |
No Charger |
| Sub Brand |
INLINE CRIMPER |
| Tool Type |
Battery Actuated Scissor Action |
| Trade Name |
PATRIOT® IN-LINE® |
| Type |
Crimper and Cutter |
| UPC |
621945480926 |
| UPC 12 Digit |
621945480926 |
Dimensions
| Dimensions |
18.73 in x 4.375 in x 2.75 in |
| Height |
2.75 in |
| Length |
18.73 in |
| Weight |
5.55 lb |
| Width |
4.375 in |
Electrical Ratings
Conductor Related
| Crimping Ranges |
With Appropriate Jaw: Crimping Capacity: Copper: #10 sol.-500 kcmil, Copper Flex: #8 AWG-350 kcmil, Aluminum: #14 sol.-350 kcmil, ACSR: #14 sol.-4/0 AWG; Cutting Capacity: ACSR (26/7) up to 556.5 kcmil, Aluminum (AAC) up to 636 kcmil, Copper (Soft Drawn) up to 600 kcmil, EHS Guy Wire up to 3/8″ |
Logistics
| Carton Quantity |
1 |
| Minimum Pack Quantity |
1 |
| Package Contents |
Tool, BG/D3 Crimp Jaw, Utility Bag |
